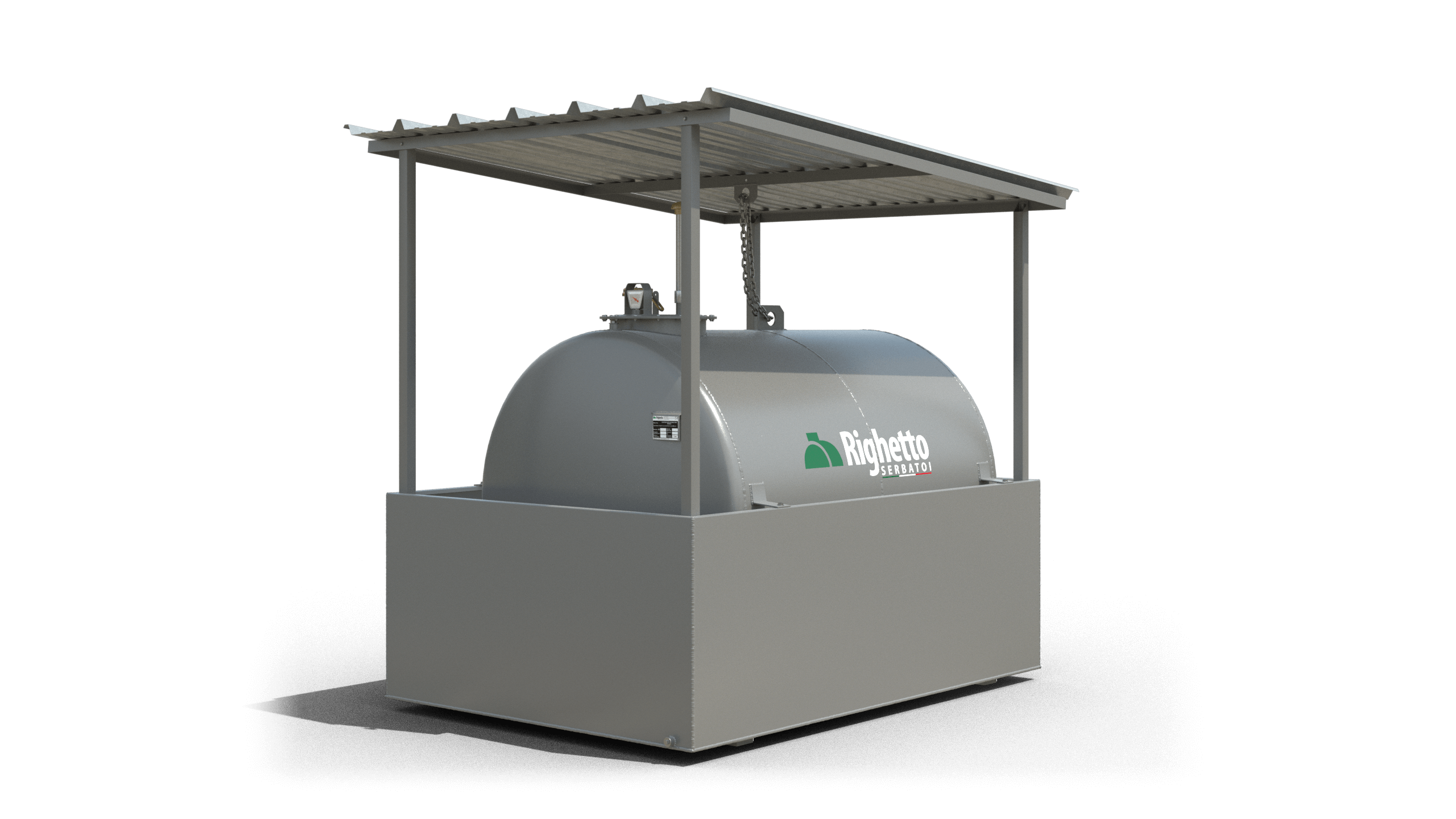

Tank for generator and heating

Tank approved by the Ministry of the Interior, made in compliance with the regulations and directives indicated below:
Ministerial Decree of 07/31/1934
Ministerial Decree of 04/28/2005
Ministerial Decree of 07/13/2011

Capacity available from 490 to 9000 litres, complete with 110% containment basin, protective canopy and manhole with connections for power supply or heating (without dispenser).

Request a quote

Technical features

  • Made of first choice carbon steel type EN10025 S235JR, painted externally
  • Padlockable 3" quick-release brass filler cap;
  • Load limiting valve at 90%;
  • 1”1/2 brass vent mushroom with flame arrester screen;
  • Float level indicator visible externally;
  • Manhole d. 420 mm. with bolts and gasket;
  • n2 1" hoses for return;
  • Vacuum lifting eyebolts;
  • Drain sleeve on the bottom for any periodic cleaning with safety cap;
  • Earthing socket and equipotential bonding;
  • 1" non-return valve;
  • 1" ball valve.
