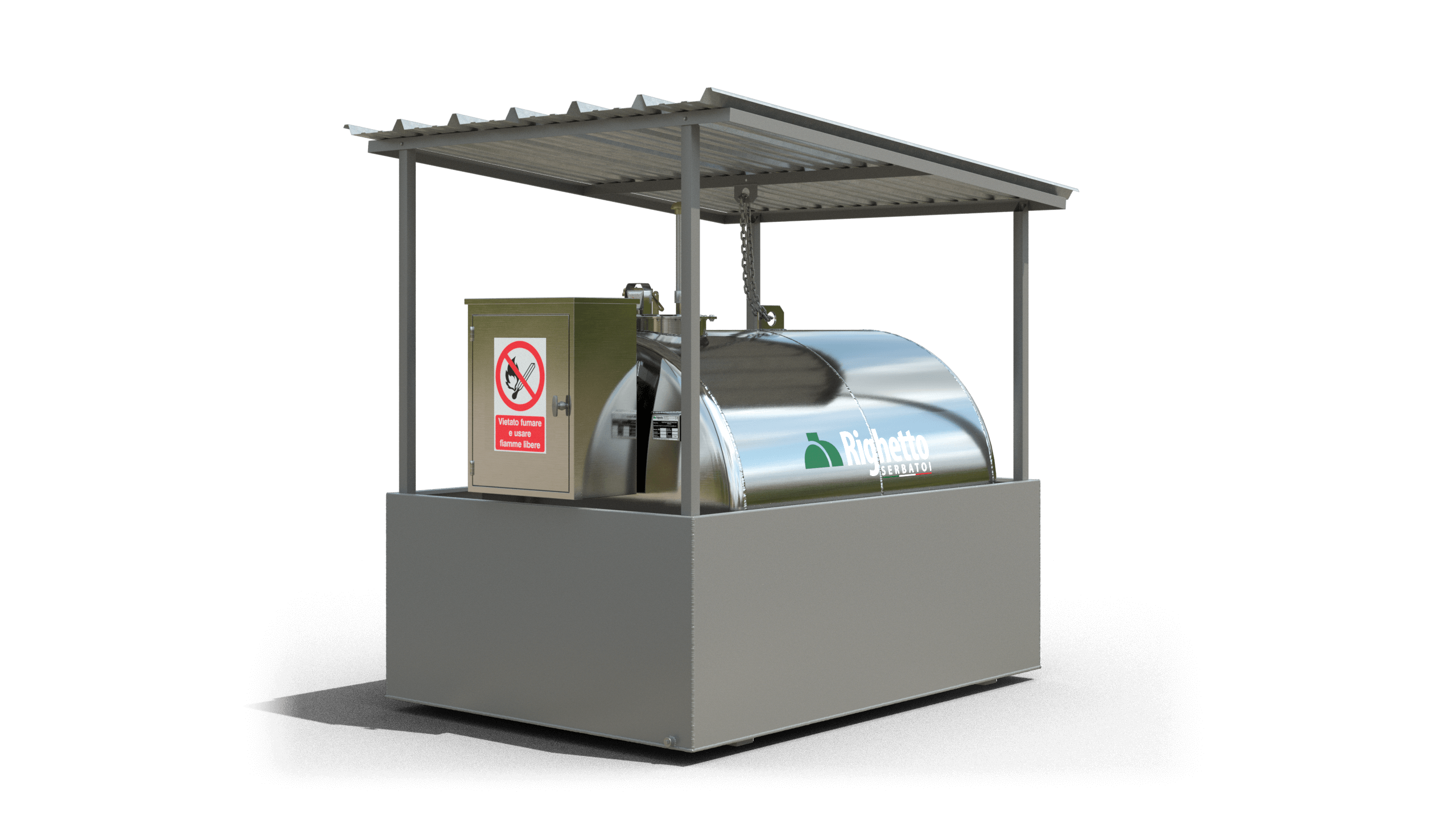

Tank for the storage and refueling of aviation fuels (JET A1, AVGAS etc.) with horizontal cylindrical axis on support brackets, with vacuum lifting eyebolt and earthing connection. Made of internally resinated carbon steel or Aisi 304 stainless steel. Containment basin in painted steel designed to contain 110% of the tank. Atex dispensing group in box or column and related accessories. Available with a canopy made of a robust, fully galvanized self-supporting frame.
Technical features
Available in carbon steel or Aisi 304/316 stainless steel. Watertight welded using a TIG process, equipped with manhole, connections for use and any ATEX dispensing group consisting of pump, automatic gun with dispensing hose and litre-counter.
Accessories provided with the tank:
- Coalescence filter and separation (fig.1)
- Atex Level Probe (fig.2) and related Atex display (fig.3)
- Spring coiling hose reel equipped with galvanized metal cable and ground clamp (fig.4)
- Hose reel with return and Atex spring
- Loading tube from below
