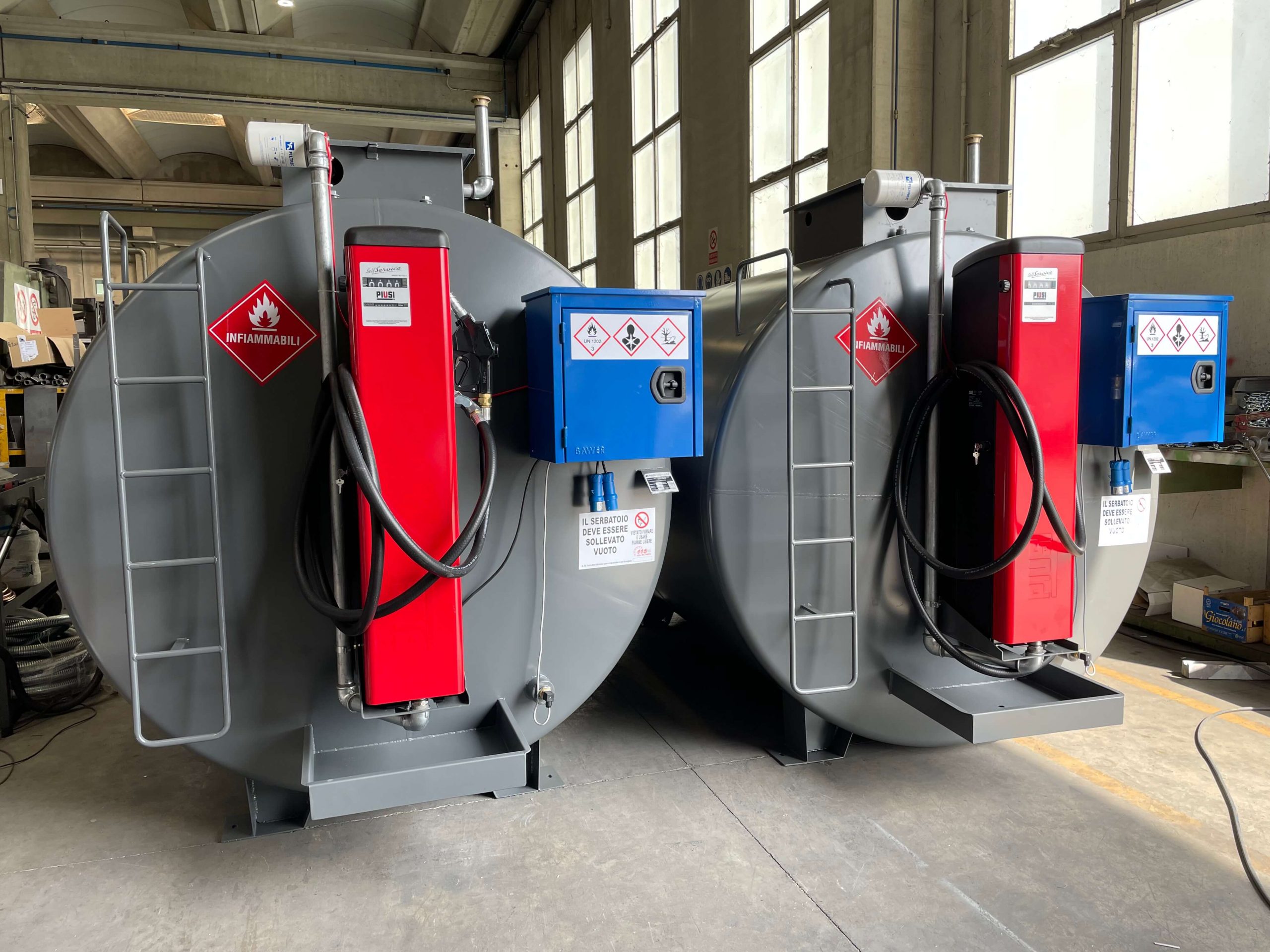

Accessories for above ground tanks

GE50E-GE70E
Electric pump 35 l/min. (mod.GE40cc) and 70 l/min. (mod.GE70cc) at 12 or 24V with filter and by-pass. Liter counter for private use with partial resettable and progressive totalizer, 4 m. rubber hose with automatic gun.
GE50-GE70
Electric pump 50 l/min. (mod. GE50) and 70 l/min. (mod.GE70) at 220V with built-in filter and by-pass. Liter counter for private use with partial resettable and progressive totalizer, 4 m. of rubber hose with automatic nozzle, IP55 electrical starting panel with pump blocking device at minimum level and reserve tank indicator.
GE40CC-GE70CC
Electric pump 35 l/min. (mod.GE40cc) and 70 l/min. (mod.GE70cc) at 12 or 24V with filter and by-pass. Liter counter for private use with partial resettable and progressive totalizer, 4 m. rubber hose with automatic gun.
GE40E-GE70E
Electric pump 35 lt./min. (mod.GE40E) and 70 l/min (GE70E) at 12 or 24 V., 4 m. rubber hose with semi-automatic pistol.
GE40-ATEX
for petrol, ATEX electric pump 40 l/min. 12V liter counter for private use with partial resettable and progressive totalizer, 4 m. of pipe with automatic ATEX gun.
GEM
manual pump 35 lt/min., 4 m. Rubber hose with semi-automatic pistol.

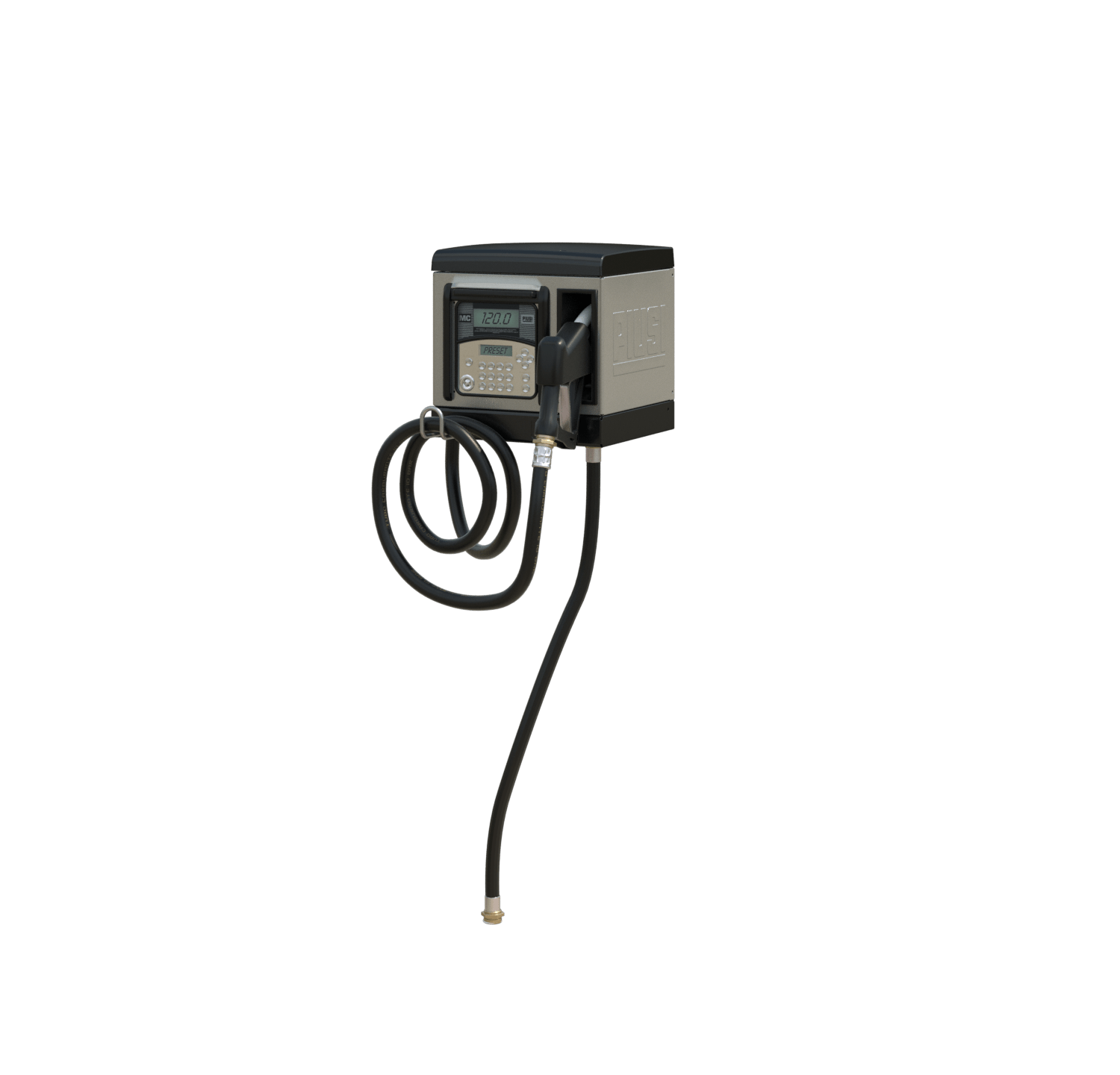

Cube Dispenser Unit
4570MK AGILIS
Electric pump delivering 70 L/min at 220V, equipped with built-in filter and by-pass, and oval gear pulser flow meter.
Includes 4 m rubber hose with automatic nozzle.
Fitted with an electronic control unit compatible with the Self Service Management Agilis software, enabling advanced and centralized fuel distribution management.
The system allows:
• Management of 80 to 250 users via PIN or user/manager keys
• Virtual monitoring of tank levels
• Data export in .pdf, .xlsx, and .txt formats
• Connection via manager key, LAN/Wi-Fi
Supplied complete with:
• Key reader
• Manager key
• Kit of 10 user keys

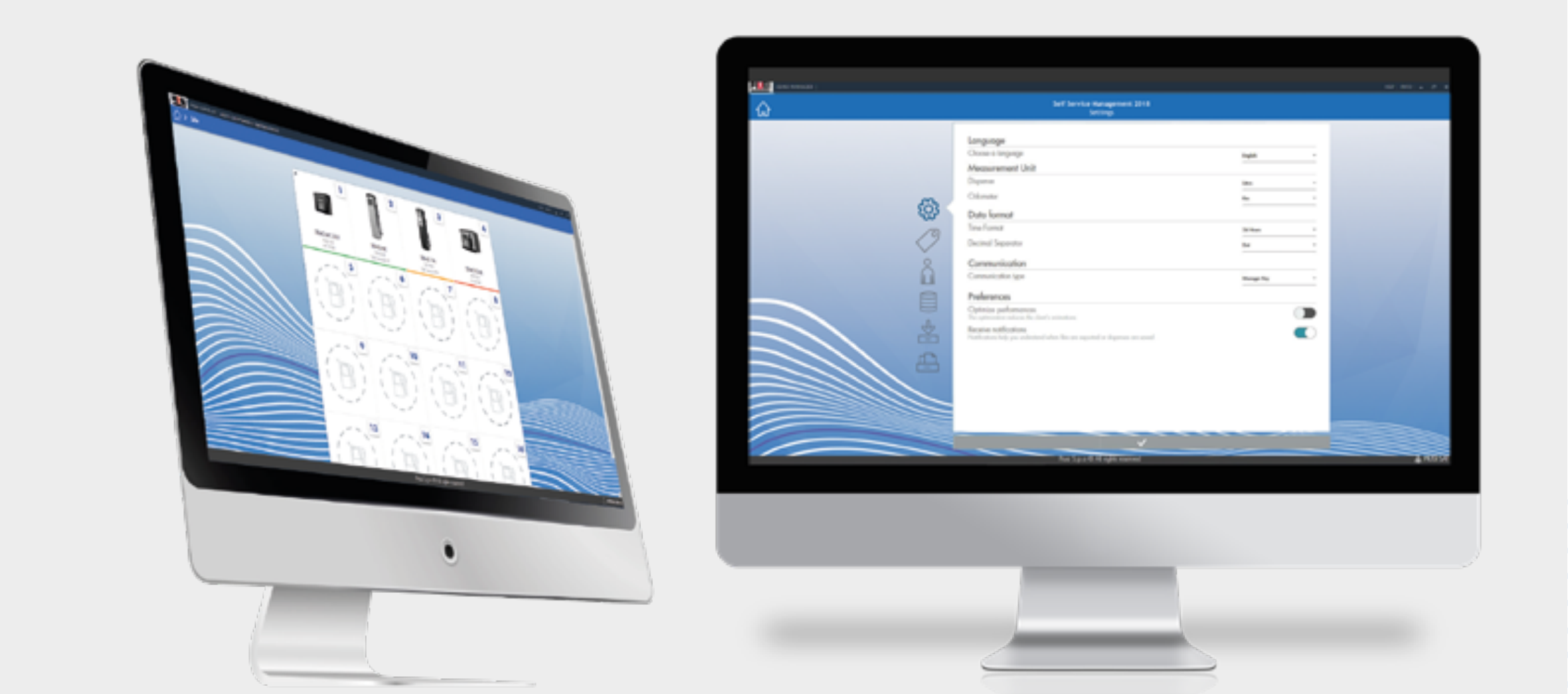

• Agilis PC software

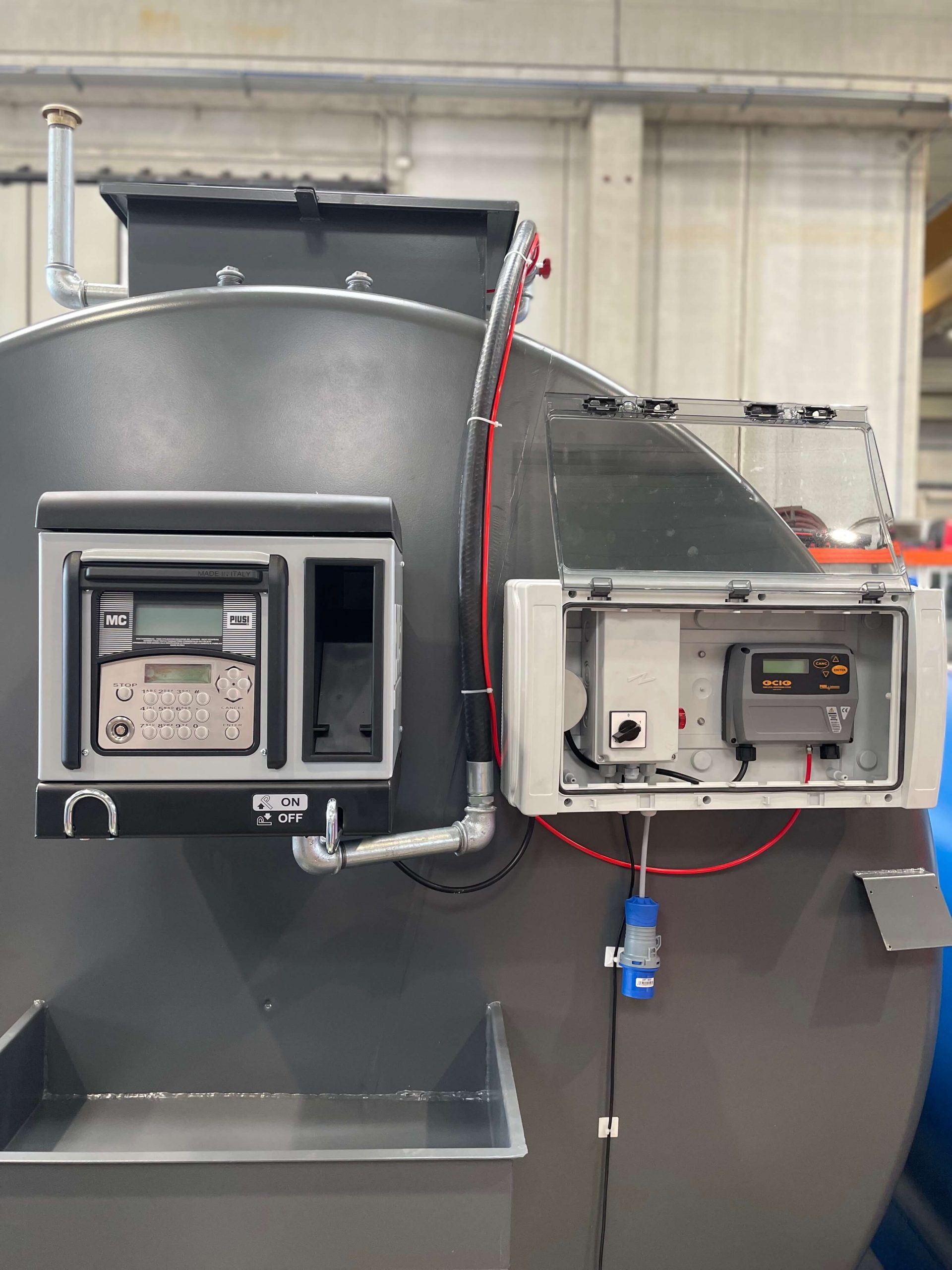

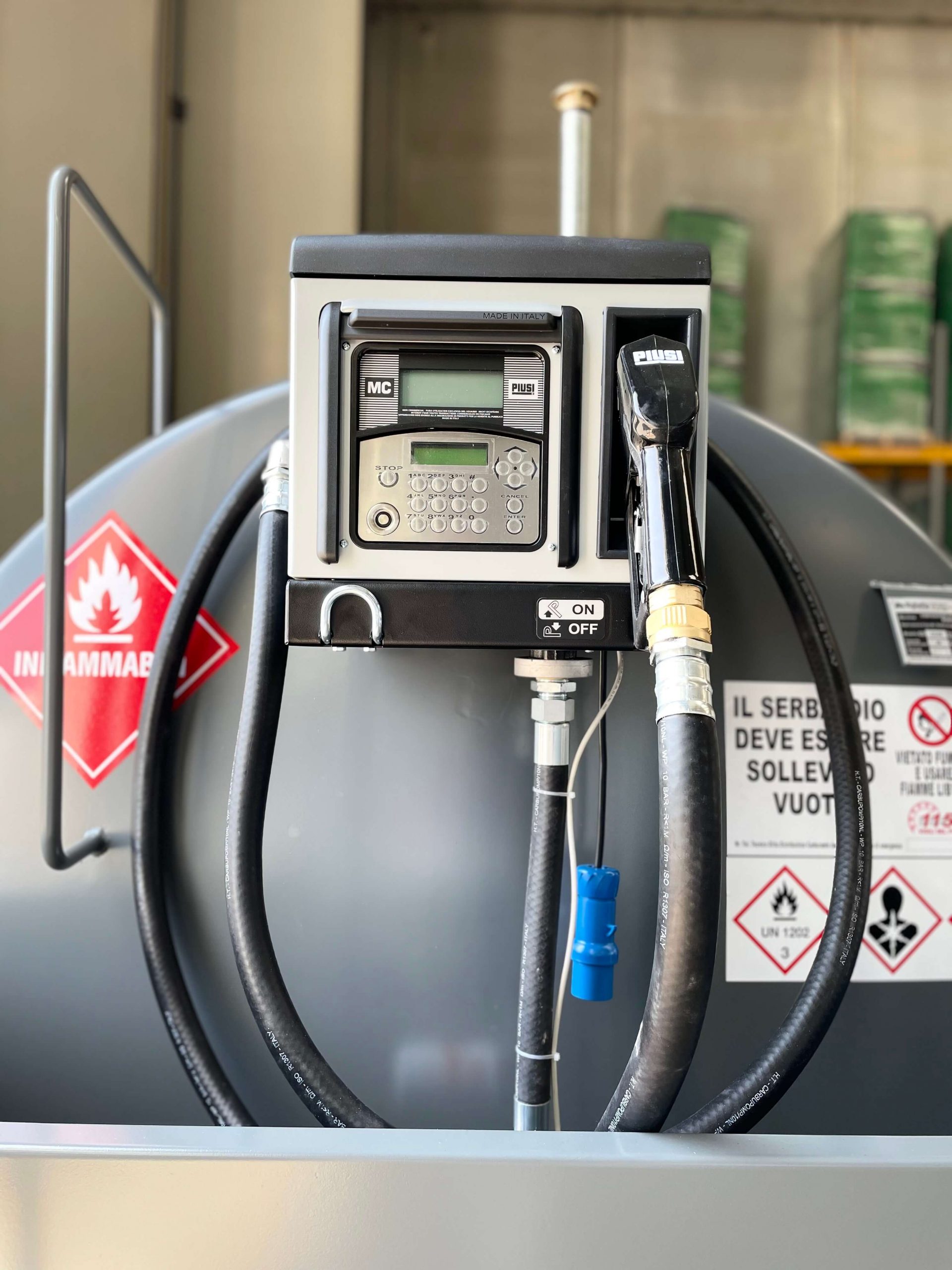

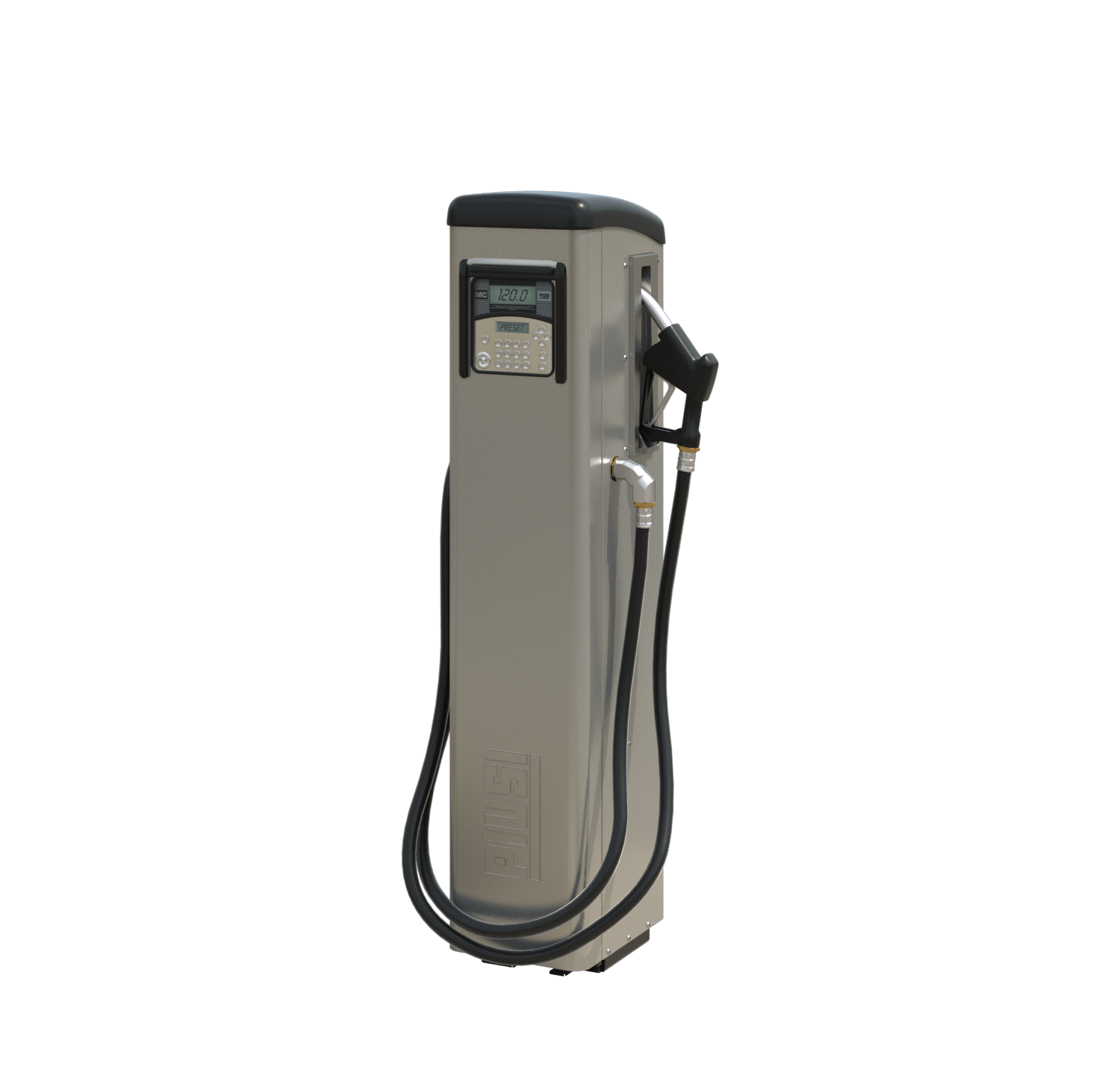

Self Service MC Agilis – Smart Diesel Dispenser for Private Use
A compact and advanced fuel station for safe and controlled diesel refueling within companies and fleets.
Available in 70 and 90 liters/minute versions (models 4650MK and 4690MK), Self Service MC Agilis is a complete solution for private diesel dispensing.
Equipped with a 220V electric pump with integrated filter and by-pass, oval gear flow meter (pulser), automatic nozzle with swivel connection, and 4-meter rubber hose.

Agilis Electronics: Advanced Management and Full Traceability
The new Agilis electronic control unit ensures total dispensing control:
• Access via PIN code or i-Button electronic keys
• Local memory for up to 255 refueling operations
• Management of up to 250 users (depending on the model)
• Entry of license plate, mileage, date, and time for each transaction
• PC connection via Agilis software for detailed reporting (wired or wireless)
Key Features
• Sturdy frame with front door for easy maintenance
• Integrated water-absorbing filter system
• High-precision flow meter
• Backlit numeric and alphanumeric displays
• Compatible with LAN, WiFi, and 4G remote management kits
• IP55 protection rating
• Operating temperature: -20°C / +60°C

Ideal for: farms, workshops, construction companies, fleet operators, and industrial environments needing a reliable, traceable, and user-friendly fuel management system.

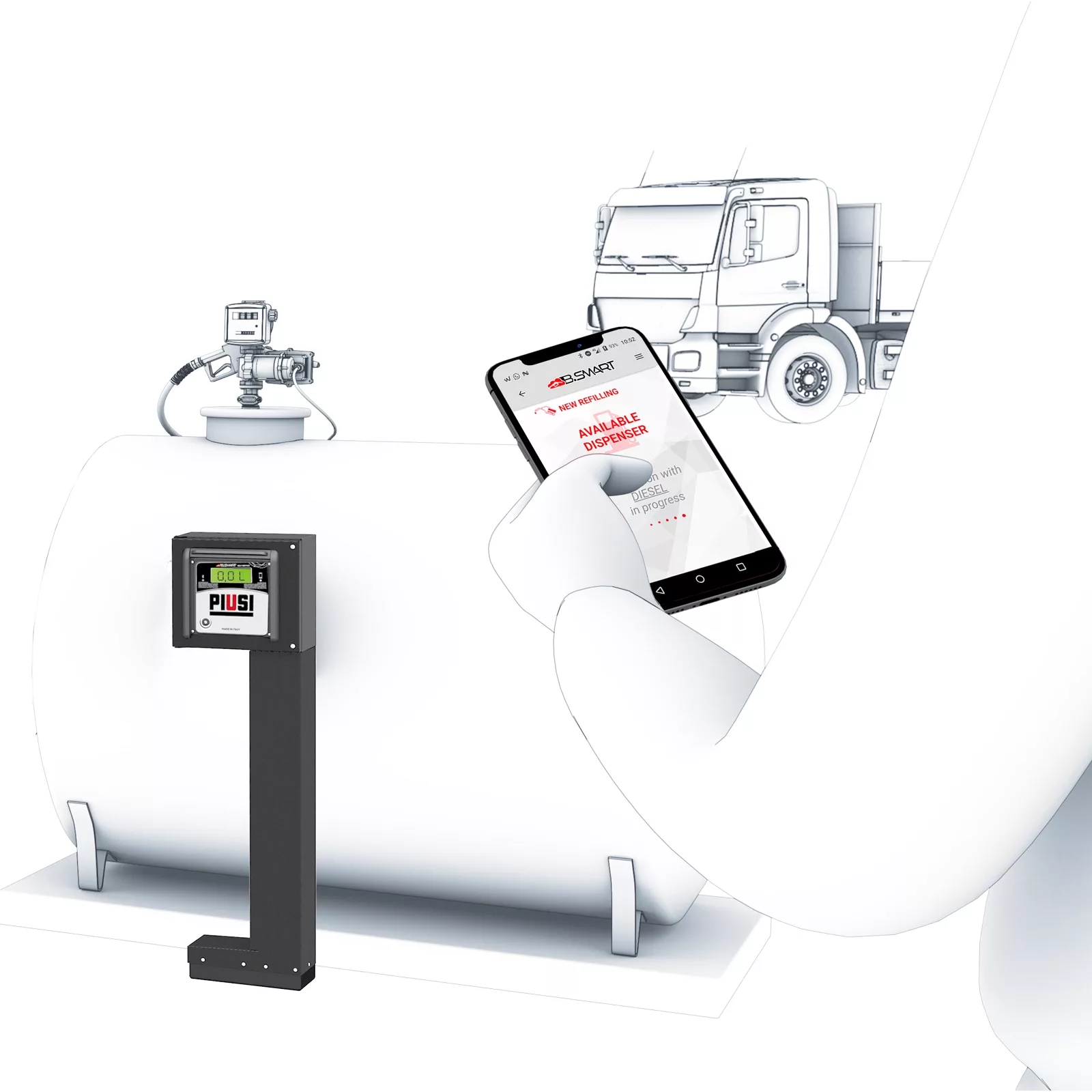

B.SMART – Smart, Simple and Cloud-Based Fuel Management
B.SMART is the cloud-based system for intelligent fuel control, ideal for fleets of any size and across multiple sites.
The system includes:

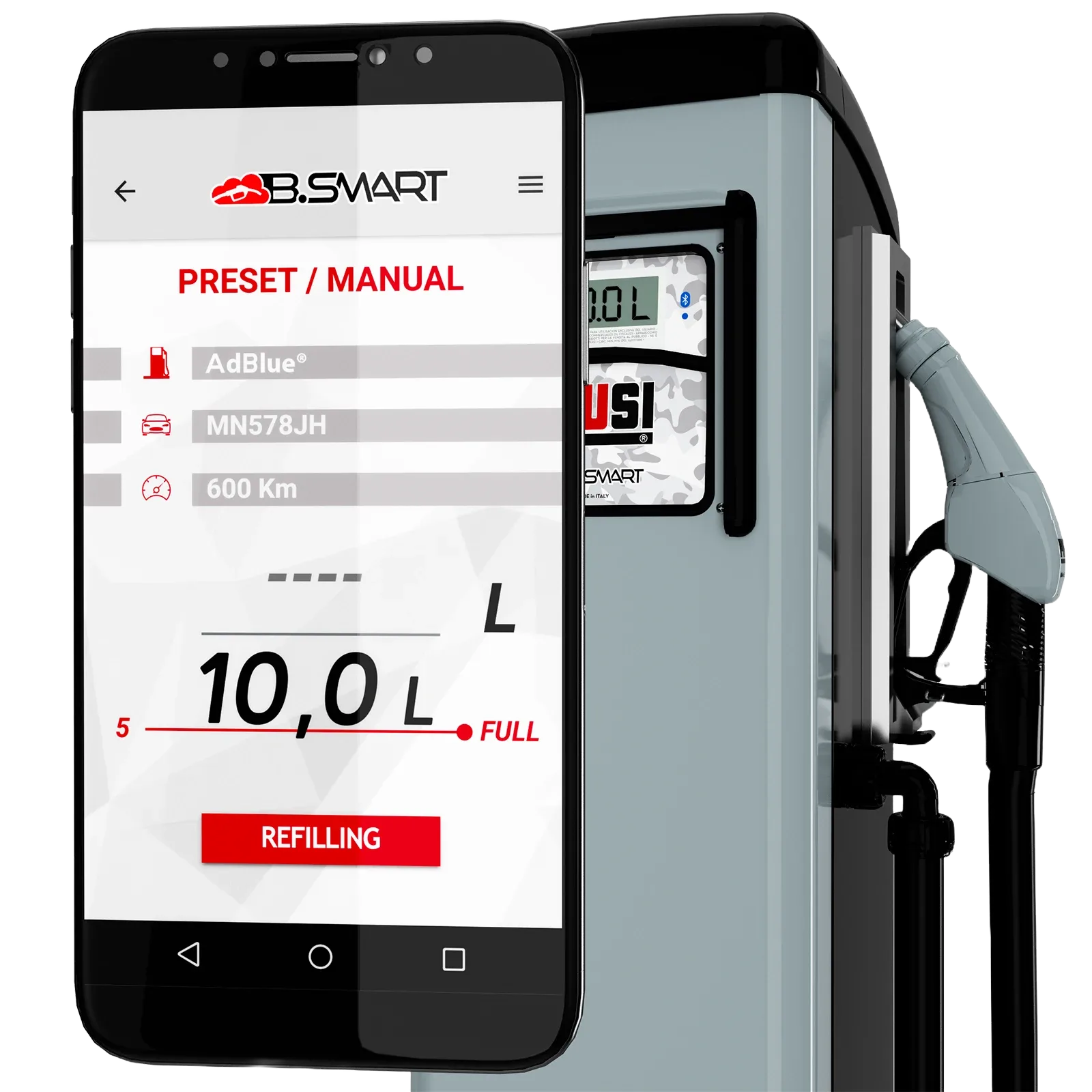

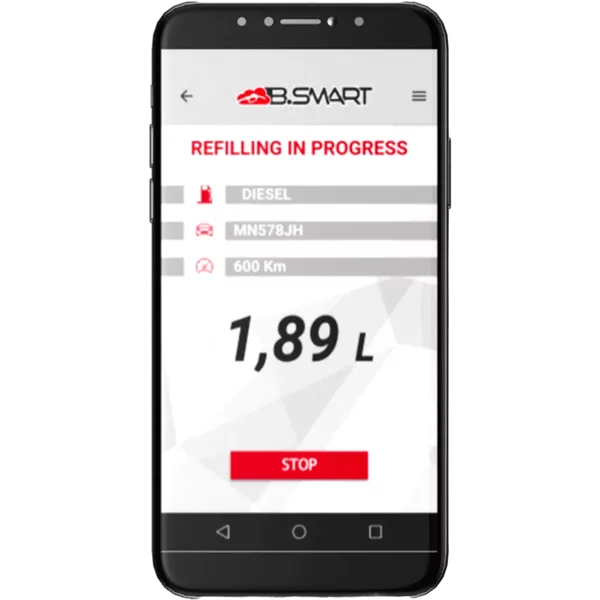

• Mobile App (iOS/Android) – Drivers connect via Bluetooth to the dispenser, view the fuel quantity, vehicle, date and time directly on their smartphone, and automatically receive a digital receipt.
• Cloud-Based Web App – Fleet managers can monitor all transactions in real time from any location, with no software installation or recurring costs.
• Compatible Dispensers – Fully integrated with CUBE B.SMART, MCBOX B.SMART, SELF SERVICE MC B.SMART and AdBlue® versions, all equipped with built-in Bluetooth technology.
🔧 Key Benefits
• No wired network or software installation required – everything is managed via App and Web
• Digital receipts and full traceability for each refueling operation
• Customizable reports exportable in just a few clicks
• Full scalability: manage users and dispensers across multiple locations from a single platform
• No additional fees: just a one-time initial investment
B.SMART is the ideal solution for logistics, agriculture, workshops, construction sites, industrial and multi-site companies.
A single tool to optimize fuel usage, prevent errors and simplify fleet fuel management.

The main function of the Mago System is to enable controlled and pre-authorized fuel dispensing. The access key for refueling is a proximity RFID tag.
It works with up to 9999 vehicle tags, 9999 driver tags, or 100 selectable driver identification codes, or 9999 randomly generated driver codes.
The system operates 24 hours a day without the need for maintenance and does not require a fixed operator, as the driver themselves can use it with simple operations.
In addition to the Mago client software, the web server allows web viewing (from a tablet or smartphone) of refueling data for the last 3 months. The data is kept on our servers for 3 months from the first download to allow data acquisition at multiple locations.
The web server can be configured to send alarm emails regarding the minimum stock level of the tanks.
Through the Fuel Alert APP, it allows real-time receipt of refueling and tank levels on the smartphone, even for individual drivers with a ticket for refuelings performed with the configured TAG.
The device operation can be programmed through the management software and a dedicated USB TAG writer to be connected to the PC (included).
It is possible to customize its operation and requests with:
– Vehicle identification
– Operator identification
– Request for kilometers or hours of work
– Control of entered kilometers, maximum autonomy, and minimum kilometers traveled for authorization
– Setting the presumed consumption average with a possible maximum deliverable quantity
– Limitations on dispenser, product, or company
The Mago system manages the real-time stock levels of the tanks, calculated mathematically from the load entries, or through level probes inserted in the tanks.
Through the level probes, it also allows the detection of tank loads and abnormal level drops; it can be connected to the Telegram messaging system on smartphones or PCs to receive alerts, refuelings, and tank levels (optional).
It does not require a direct connection to the personal computer: the refueling data is transmitted by the BiClick IOT module via the internet over the GPRS network.
It stores all data regarding the operation performed: date and time of refueling, vehicle identification number and possibly the driver, liters dispensed, kilometers traveled, and tank level.
All internally stored data is retained even in case of a power outage, and if the power supply is interrupted during refueling, the data is saved.
The management software included with the device allows:
– Data download via the PC’s internet connection
– Refueling reports in chronological order or by consumption averages
– The historical register of tank movements (optional)
– TAG coding for their operation via the USB programmer
– The residual stock of the tank and the values of the possible level probe
– Management of driver and vehicle records
– Entry of external refuelings or import from credit card invoices (optional)
– Export of reports in Excel or .csv file
– Web server for quick consultation of levels and refuelings even without management software, email alerts on minimum tank stock

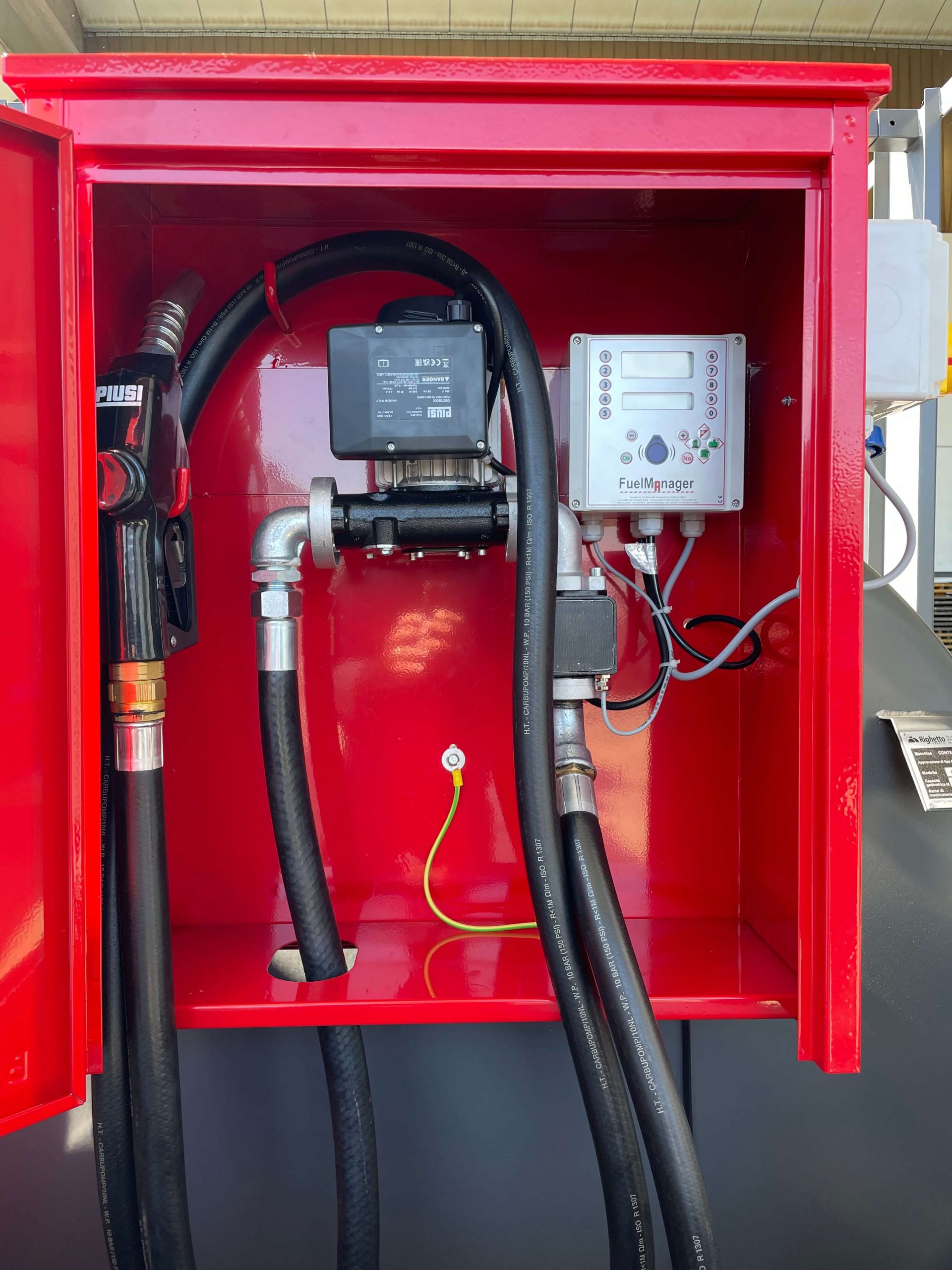

The main function of the Fuel Manager System is to allow controlled and pre-authorized fuel dispensing. The access key for refueling is a proximity RFID tag. The operation of the device is programmable through a dedicated program TAG:
– Operator identification (tag or secret code)
– Vehicle identification (tag or vehicle number entry)
– Kilometer input
The Fuel Manager system manages the tank stocks in real time, calculated mathematically from the entry of loads or through level probes inserted in the tanks. It does not require a direct connection to a personal computer: the refueling data is transmitted by the GPRS Click module via the internet on the GPRS network. The system operates 24 hours a day without the need for maintenance and does not require a fixed operator, as the driver himself can use it with simple operations.

It stores all data related to the performed operation: date and time of refueling, identification number of the vehicle and possibly of the driver, liters dispensed, kilometers traveled, and tank level. All data stored internally is retained even in the event of a power outage, and in the event of a network power failure during refueling, the data is saved.

The management software included with the device allows:
– Data download via PC internet connection
– Refueling reports in chronological order or by consumption averages
– Remaining tank stock and possibly the level probe values
– Management of driver and vehicle records

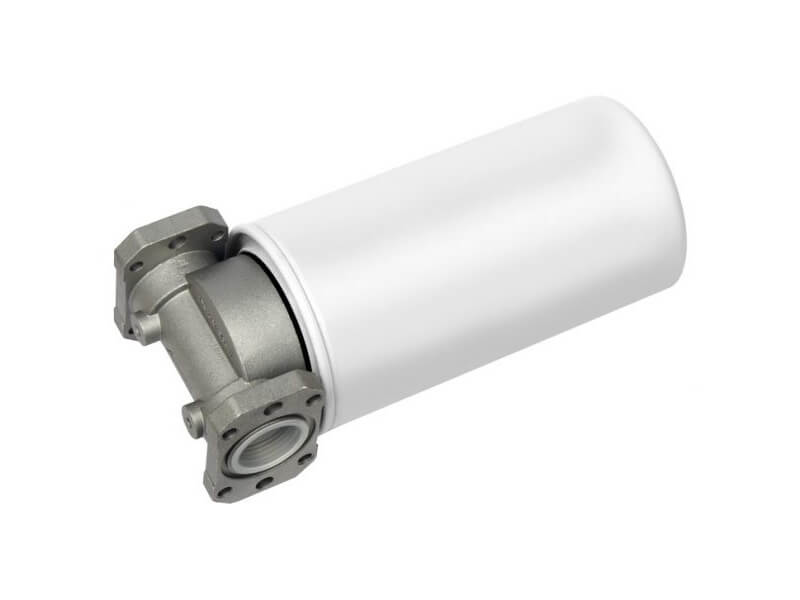

Cartridge filter: Diesel impurity filter or water separator filter

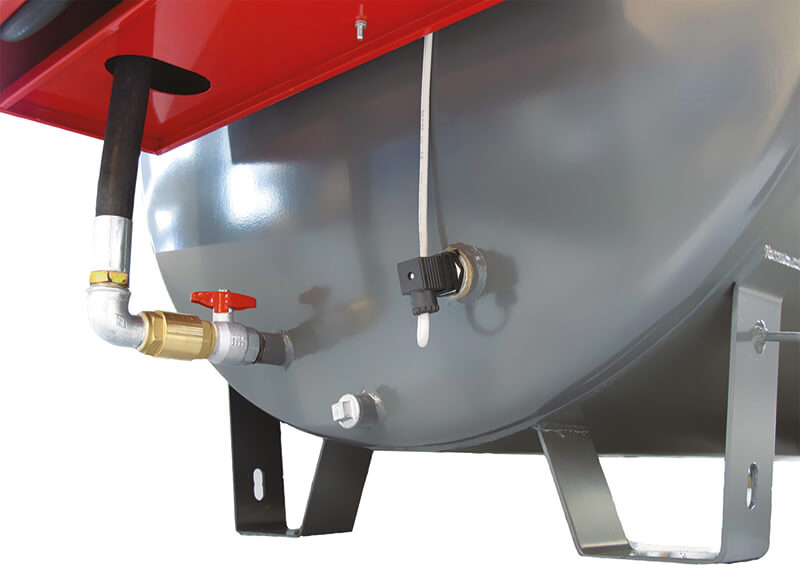

Connections: Suction connection in a suitable position to avoid sucking any impurities from the bottom of the tank. Complete with 1″ ball valve and 1″ non-return valve. Total drain plug for any periodic maintenance.

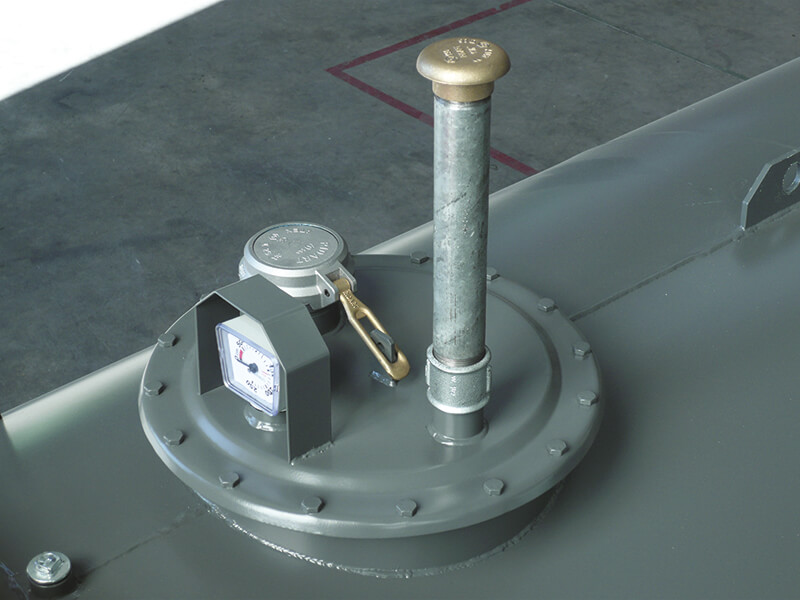

Manhole ø 420 mm with airtight gasket. Complete with 3″ø loading mouth with closure and lockable brass quick coupling, load limiting valve (approved) to 90% of capacity. Mechanical level indicator with protective structure. Vent mushroom with flame arrester screen.
