SE fire prevention system

Integrated system compliant with standards: UNI EN 12845/15 – UNI 11292 – UNI 10779

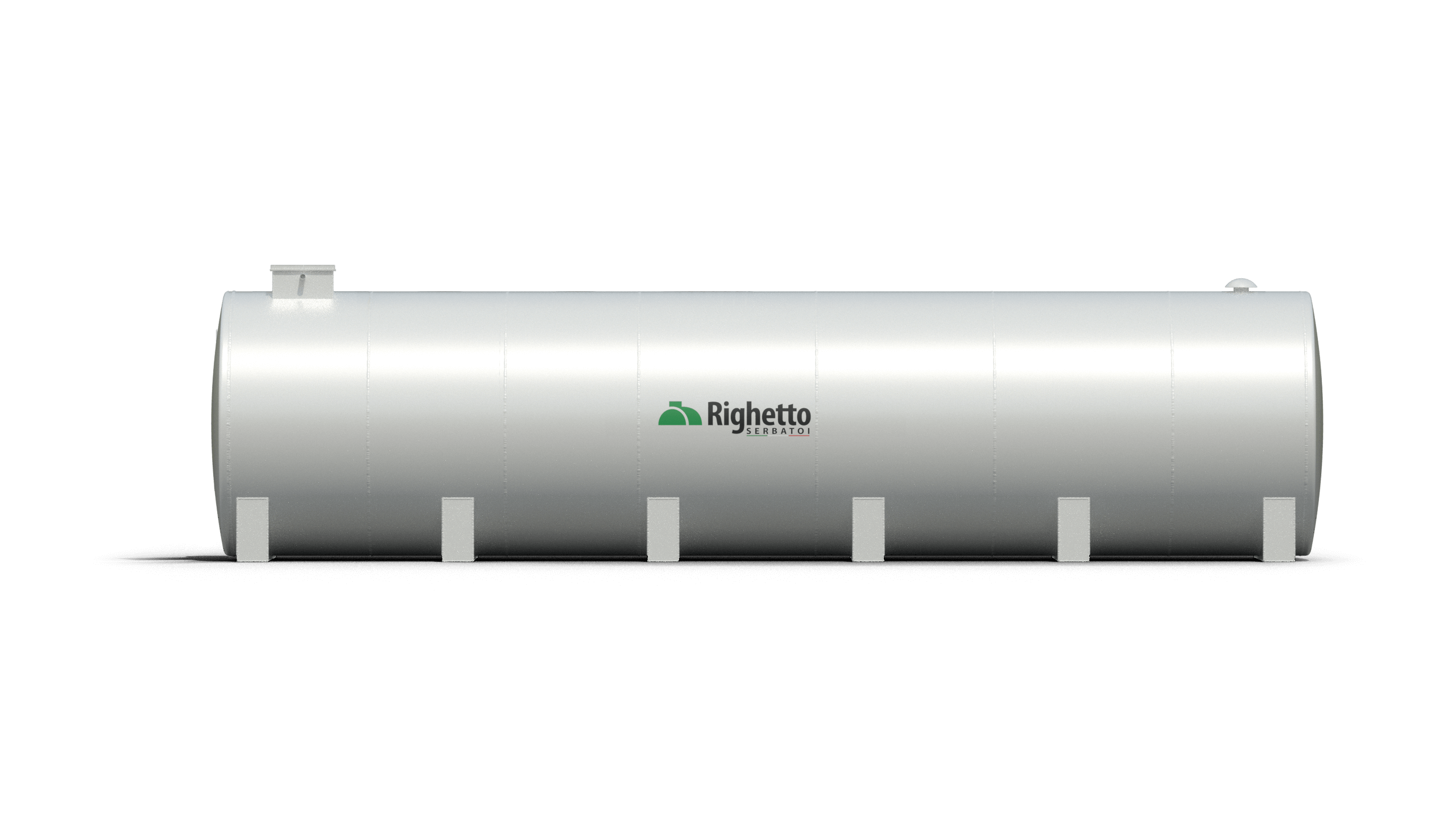

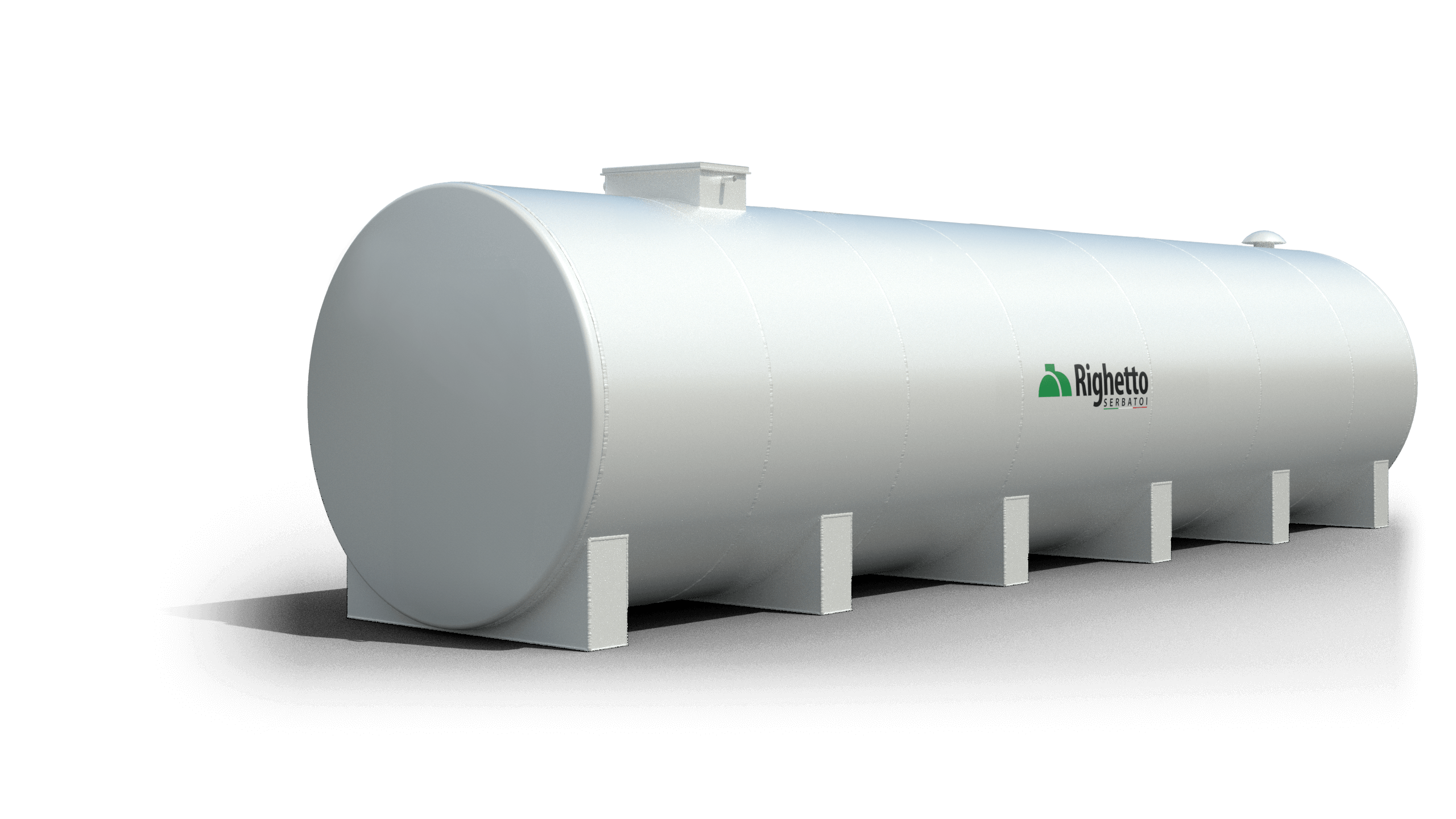

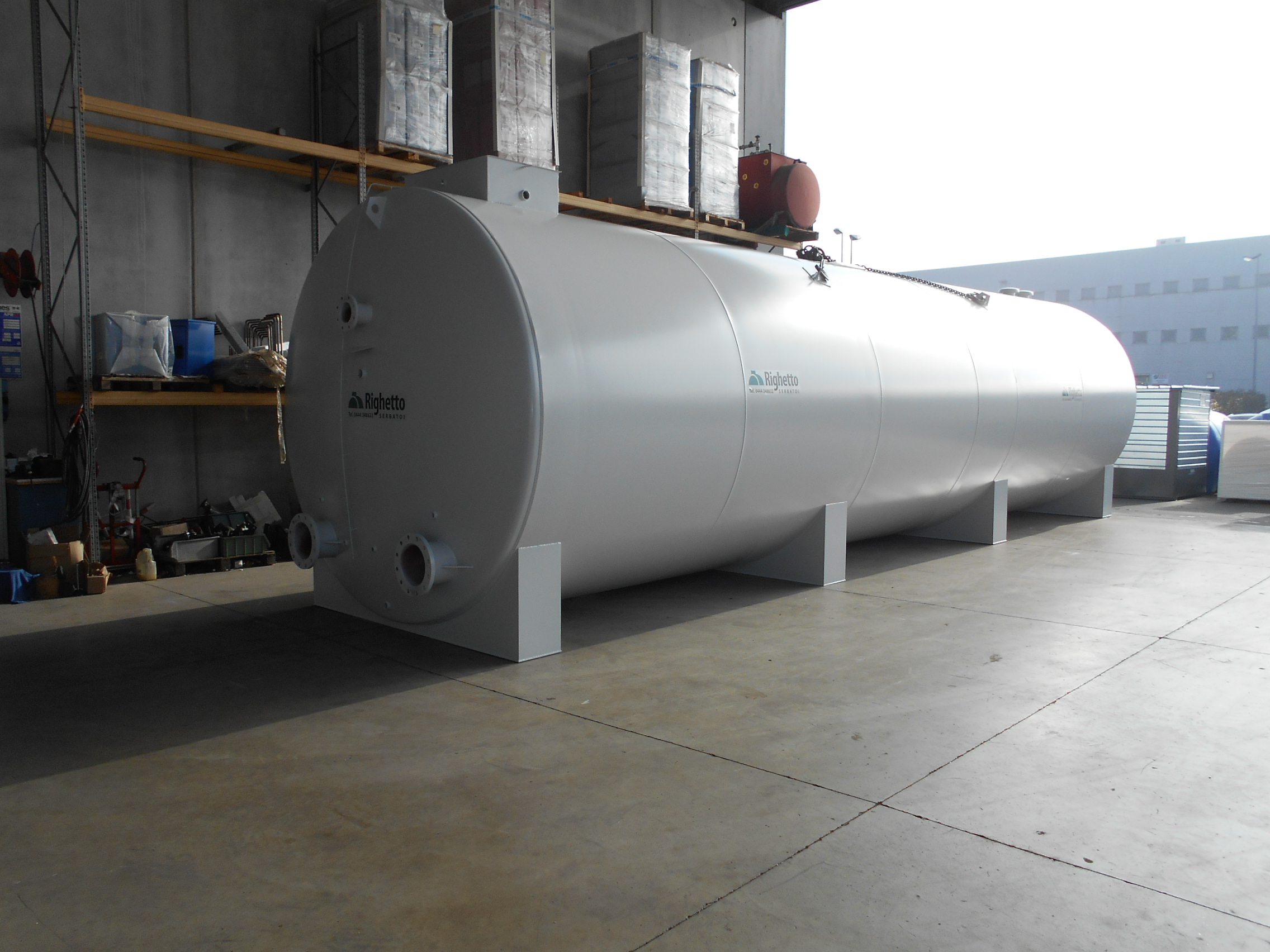

External system with subhead installation consisting of a metal storage tank complete with technical compartment made in a single block with front access door. To divide the two areas, a rounded bottom welded to seal and with reinforcing supports was inserted.

Technical features

dimensions
Geometric capacity (mc) Useful capital (m3) Ø (mm) Length TOT with technical compartment (mm)
16 14 3000 6100
23 21 3000 7100
37 36 3000 9100
52 50 3000 11100
62 60 3000 12600
75 72 3000 14600
83 80 3000 16100
94 91 3500 14100
104 100 3500 15100
